90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting

Product Categories
Sunshine Opto-electronics Enterprise Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting

Delivery Time : 7-10 working days

PCB size : 205.00mm diameter, 1.5mm thickness

Beam angle : 90 degree

Lens size : 234.9mm diameter, 9.38mm height

Transmittance : 91%

LED chip : 3030 SMD LED, 140-150lm/w@ 150mA,6v

Certification : SGS,RoHS,CE

Brand Name : Sunshineopto

Model Number : SUN-J180-3030-90

Place of Origin : Shenzhen,China

Payment Terms : T/T,PAYPAL,Western Union,

Supply Ability : 5000pcs/months

Packaging Details : Cartons

MOQ : 100

Price : negotiate

Lens material : Optical grade PC

Contact Now

90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting
Product Overview

The 90° LED High Bay Lens Module is an integrated lighting solution combining high-efficiency SMD 3030 LEDs with a precision optical lens system. Designed specifically for industrial lighting applications, this module delivers excellent light distribution, high lumen output, and reliable long-term performance.With an optimized 90-degree beam angle and up to 91% optical transmittance, the module maximizes fixture efficiency while maintaining uniform illumination across large industrial spaces. The integrated design simplifies fixture manufacturing, reduces assembly costs, and improves product consistency.This LED optical module is widely used in UFO high bay lights, warehouses, manufacturing facilities, logistics centers, gymnasiums, and large commercial buildings.

Key Features
  • Ideal for retrofitting old 100W lamps or designing power lamps from 90-160W per module
  • Lowest total cost solution - reuses existing Metal Halide or HPS bulb housings
  • Industry-leading thermal management technology
  • Operating temperature range: -35°C to +70°C
  • Mercury-free and lead-free construction
  • No harmful UV radiation production
  • Directional lighting with dark sky compliance
  • Available with various beam angles including 90° and 120°
Technical Specifications
Model No SUN-J180-3030-90
Main Components Array lens, silicon gasket, and PCB board
Lens Material PC
Lens Size 234.9mm diameter, 9.38mm height
PCB Size 205mm diameter, 1.5mm thickness
Transmittance 91%
LEDs 3030 SMD LED, 140-150lm @ 150mA, 6V
Beam Angle 90 degree
GET A FREE QUOTE NOW.

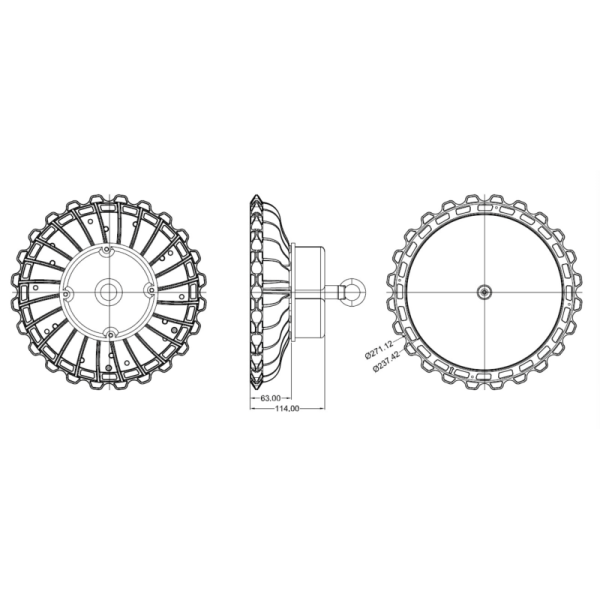

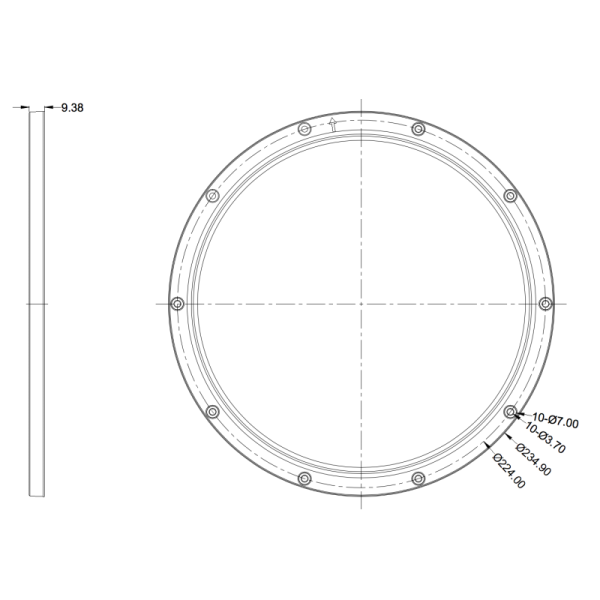

Detailed Photos
90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting 90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting 90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting
Applications
  • UFO High Bay Light
  • Warehouse Lighting
  • Factory Lighting
  • Logistics Centers
  • Manufacturing Facilities
  • Exhibition Halls
  • Sports Arenas
  • Retail Warehouses
  • Industrial Workshops
90° LED High Bay Lens Module with SMD 3030 LEDs High Efficiency Optical Module for Industrial Lighting
Shipping & Delivery Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CNF
Sample Availability YES
Standard Delivery Time 3-4 working days

FAQ
Q:What is the advantage of a 90° beam angle?
A:A 90° beam angle provides balanced coverage and illumination intensity, making it ideal for warehouse and industrial lighting.
Q:Why use SMD 3030 LEDs?
A:SMD3030 LEDs offer high efficacy, excellent thermal performance, and long-term reliability.
Q:Can custom beam angles be developed?
A:Yes. Different beam angles can be customized according to project requirements.
Q:Do you support OEM and ODM manufacturing?
A:Yes. We offer complete customization, tooling, and manufacturing services.
